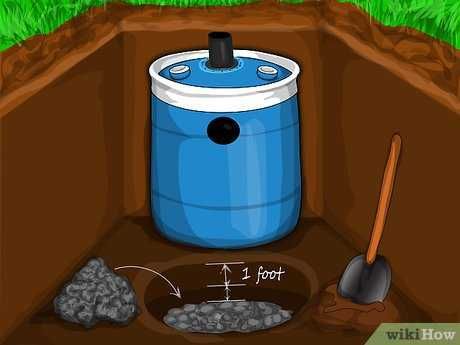

Step 4 Level the hole...

Getting a Septic System Right the First Time Starts With These Installation Decisions

A septic system that fails within the first few years of installation rarely fails because the system design was wrong. It fails because the installation decisions that determine whether the design performs as intended were made incorrectly, quickly, or without the site-specific information those decisions required. The consequences of those decisions don’t present themselves immediately. They develop across months and years as the system operates under conditions the installation created. By the time the failure is visible, whether through surface breakout, odor, or drain field saturation, the remediation required is more expensive than the additional care at installation would have been.

Site Assessment Before Any System Component Is Specified

Septic System DiagramClallamcountywa.gov

The site assessment that precedes a septic system installation isn’t a formality that confirms the system can be installed. It’s the information-gathering process that determines what system can be installed, where it should be located, and what the soil conditions require of the system’s components to perform correctly across the installation’s service life.

Percolation testing establishes how quickly the soil in the proposed drain field area absorbs water. This determines the drain field area required to handle the system’s design load without saturation. Soil profiling identifies the soil layers present below the surface, their composition, and the depth to groundwater and bedrock, all of which affect how the effluent released from the tank disperses through the soil and whether it reaches groundwater in a condition that meets the relevant environmental standards.

A site assessment conducted at one location on a property whose soil conditions vary across the area available for system installation produces information about that location, not about the optimal location. The additional assessment work that identifies the area with the most favorable soil conditions for drain field performance is assessment work that changes where the system gets installed, and where the system gets installed is one of the most consequential decisions in a septic installation.

Tank Sizing Against the Actual Demand Profile

Concrete septic tanks are specified to a volume that determines how long the wastewater entering the tank is retained before the clarified effluent exits to the drain field. Retention time is what allows the separation of solids, the settlement of heavier particles to the tank floor, and the biological treatment processes that reduce the biological oxygen demand of the effluent before it reaches the drain field. A tank undersized for the property’s actual demand profile produces retention times that are shorter than the treatment process requires, which produces effluent quality that’s lower than the drain field was designed to receive.

Demand profiles vary enough between properties that the standard sizing tables, which relate tank volume to bedroom count, produce correctly sized tanks for average occupancy conditions and undersized tanks for properties with higher-than-average occupancy, high water use fixtures, or commercial activity that adds to the wastewater load the residential classification didn’t account for.

Inlet and Outlet Configuration and Its Effect on Treatment Performance

Inlet and Outlet Configuration and Its Effect on Treatment PerformanceIRP

Both inlet configuration and outlet configuration affect how the tank’s internal environment functions and how consistently the system performs across varying demand conditions. An inlet that discharges directly into the settled sludge layer disrupts the separation produced by the retention process. It also reduces treatment performance by remixing settled solids with the liquid being treated.

A properly configured inlet dissipates the energy of the incoming flow before it reaches the liquid surface, reduces the disturbance to the settled layers, and distributes the incoming flow in a way that doesn’t create short-circuit pathways that allow partially treated effluent to reach the outlet before its retention time is complete. The outlet configuration that draws from the clarified liquid zone delivers effluent to the drain field at the treatment quality the system was designed to achieve.

Drain Field Construction in Accordance With the Soil Assessment

The drain field that was designed around the soil assessment results performs as designed when it’s constructed in the location and to the specifications the assessment determined. A drain field constructed in a location that was convenient for the installation crew but different from the location the assessment identified as suitable, or constructed to dimensions that were adjusted during installation without reference to the assessment data, performs in the soil conditions of its actual location rather than the conditions the design was built around.
